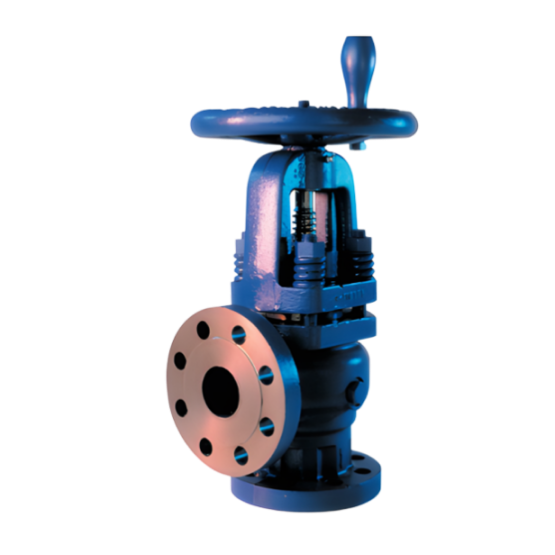

3400/3900 Seatless BlowOff
Main Features
  • Designed according ASME section 1, ASME B31.1, ASME B16.34.
  • For boiler systems up to 3206 psig.
  • Rugged construction to withstand high pressure and high velocities.
  • Excellent resistance to cleaning acids and wear caused by precipitated solids.
  • No Seat
  • will not score or plug with dirt
  • will not leak
  • Live-loaded packing
  • will not leak after packing
  • Slow opening
  • will not rapidly drain boiler drum
3400/3900 Seatless BlowOff
Specifications
  • Valve Size: NPS 1 to NPS 2 1/2
  • Pressure Rating:CL250;CL300;CL600
  • Process connection type: flange
  • Material: carbon steel, cast iron
  • Other configurations: Contact us for more information on specifications or options for this product
Applications

Blow-off service in boiler systems to remove dirt, sediment and scale as well as maintain boiler level surge.
